Key Specs
The Cat® spark-ignited generator sets for stationary emergency and non-emergency (demand response) applications provide a much cleaner and sustainable solution for your power needs. The ability to run on various types of gaseous fuels, adapting automatic fuel change-over and microgrid compatibility, make these products capable to power a wide range of applications.
Able to start large connected motors loads during a power outage
Complies with emission standards required for local permits
Highest classification ensures alternator durability
| Frequency | 60 Hz 60 Hz |
| Natural Gas Rating | 175 ekW 175 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Emergency and Non-Emergency Application U.S. EPA Certified for Stationary Emergency and Non-Emergency Application |
| Voltage | 208-600 208-600 |
| Speed | 1800 rpm 1800 rpm |
| Gas Standby Rating | Standby, Demand Response and Prime Standby, Demand Response and Prime |
| Engine Model | V8, 10.3L TCAC V8, 10.3L TCAC |
| Bore | 4.6 in 109.2 mm |
| Stroke | 4.75 in 120.7 mm |
| Displacement | 628.5 in³ 9.1 l |
| Compression Ratio | 9.6:1 9.6:1 |
| Aspiration | TCAC TCAC |
| Fuel System | Electronic Electronic |
| Length | 117.5 in 2896 mm |
| Width | 63 in 1397 mm |
| Height | 72 in 1727 mm |
| Dry Weight - Genset | 3924 lb 1464 kg |
Caterpillar product brochures and other informational documents are available for your growing business.
DG175 Rear Right View
DG175 Rear Left View
DG175 Front Left View
DG175 Front Right View
DG175 Enclosure Rear Right View
DG175 Enclosure Rear Left View
DG175 Enclosure Front Left View

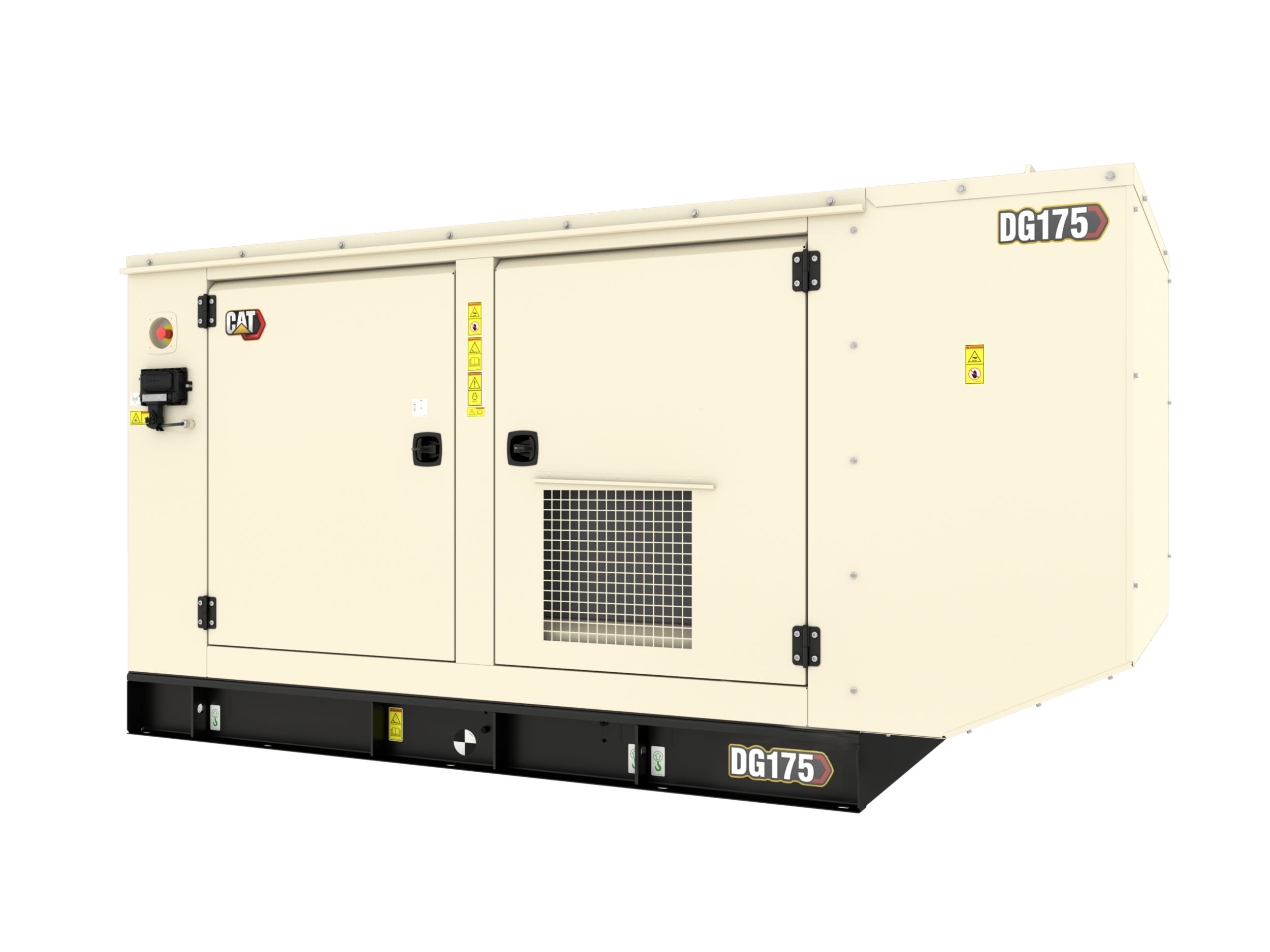

DG175 Enclosure Front Right View
