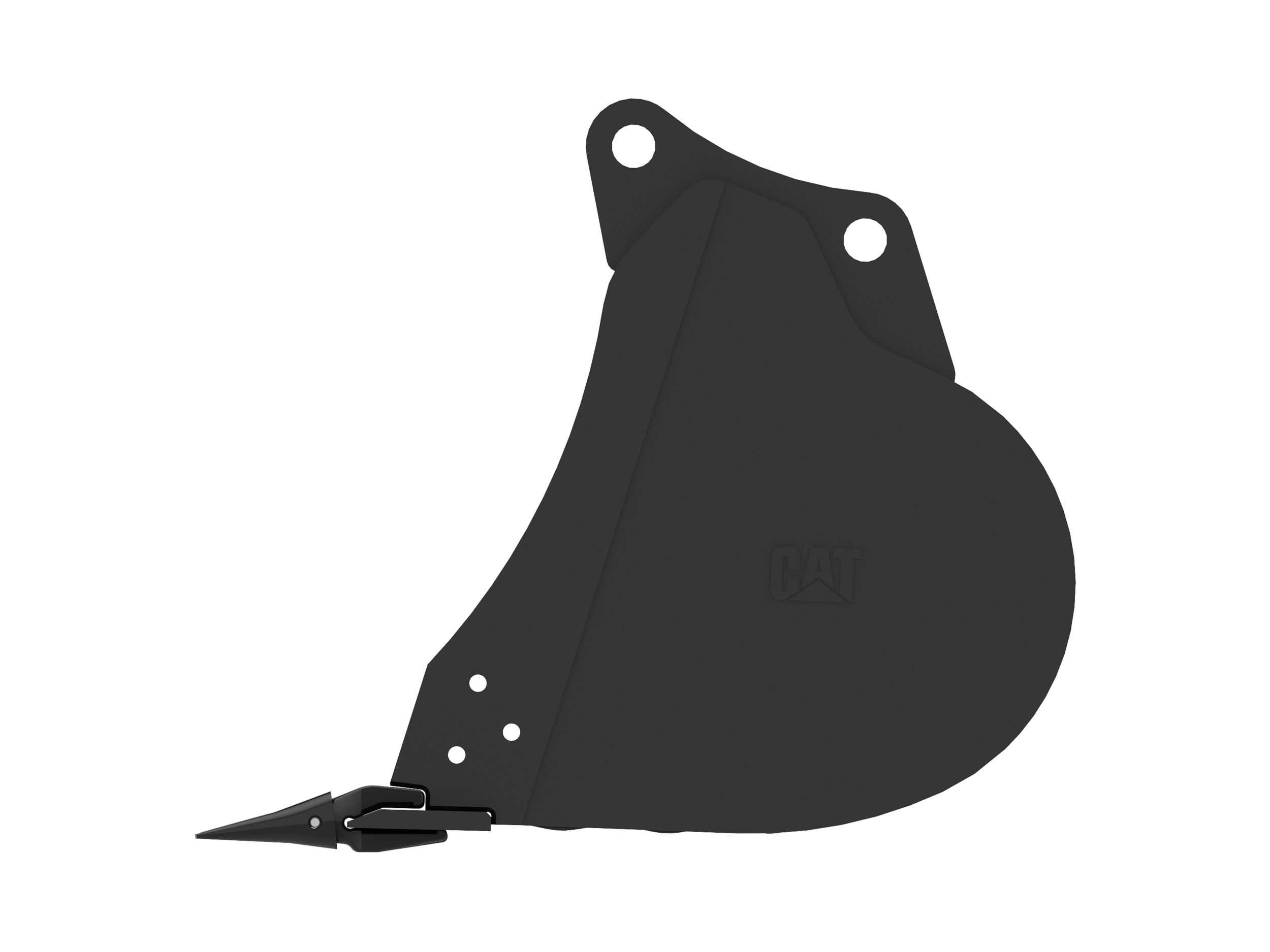

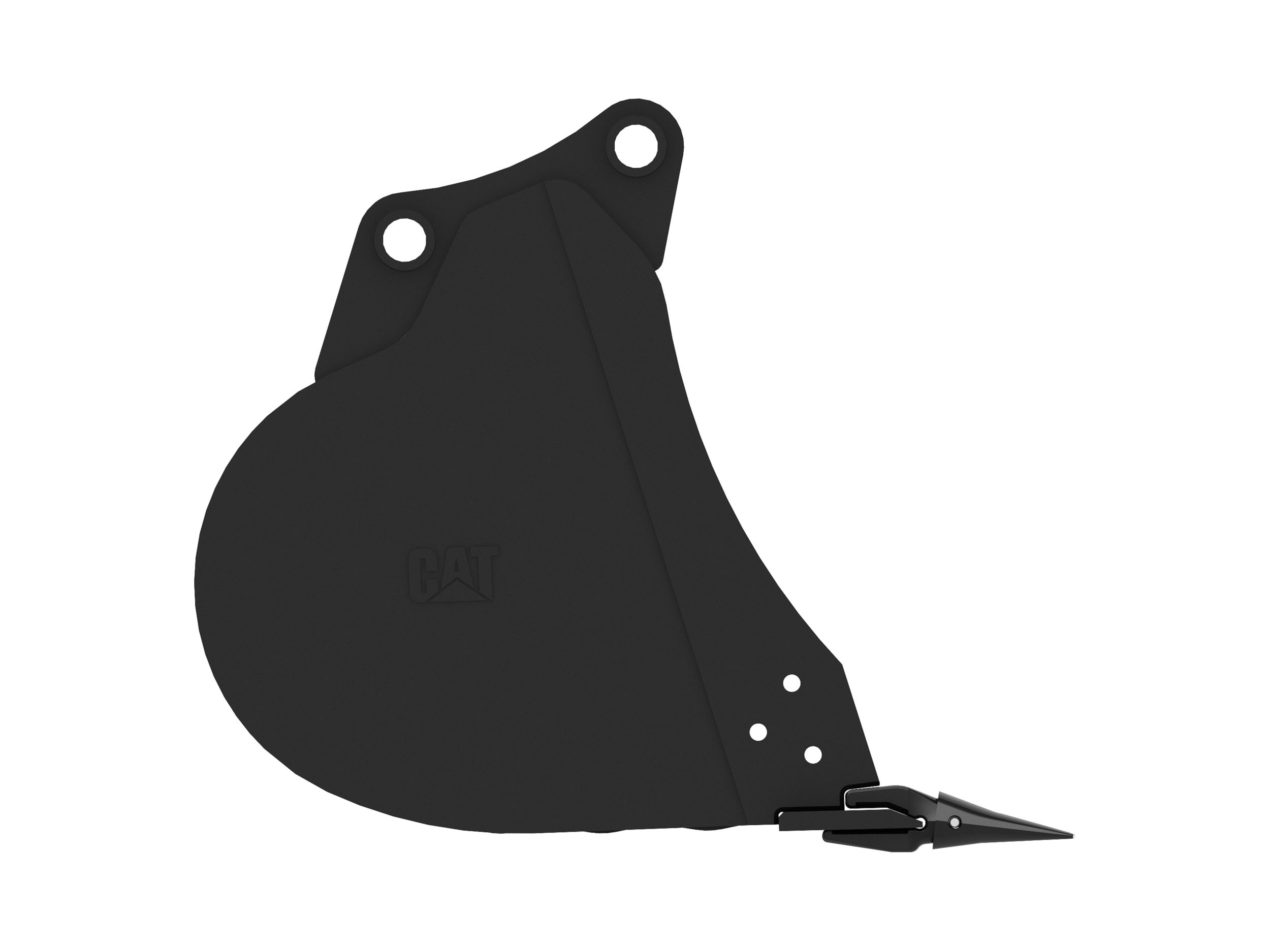

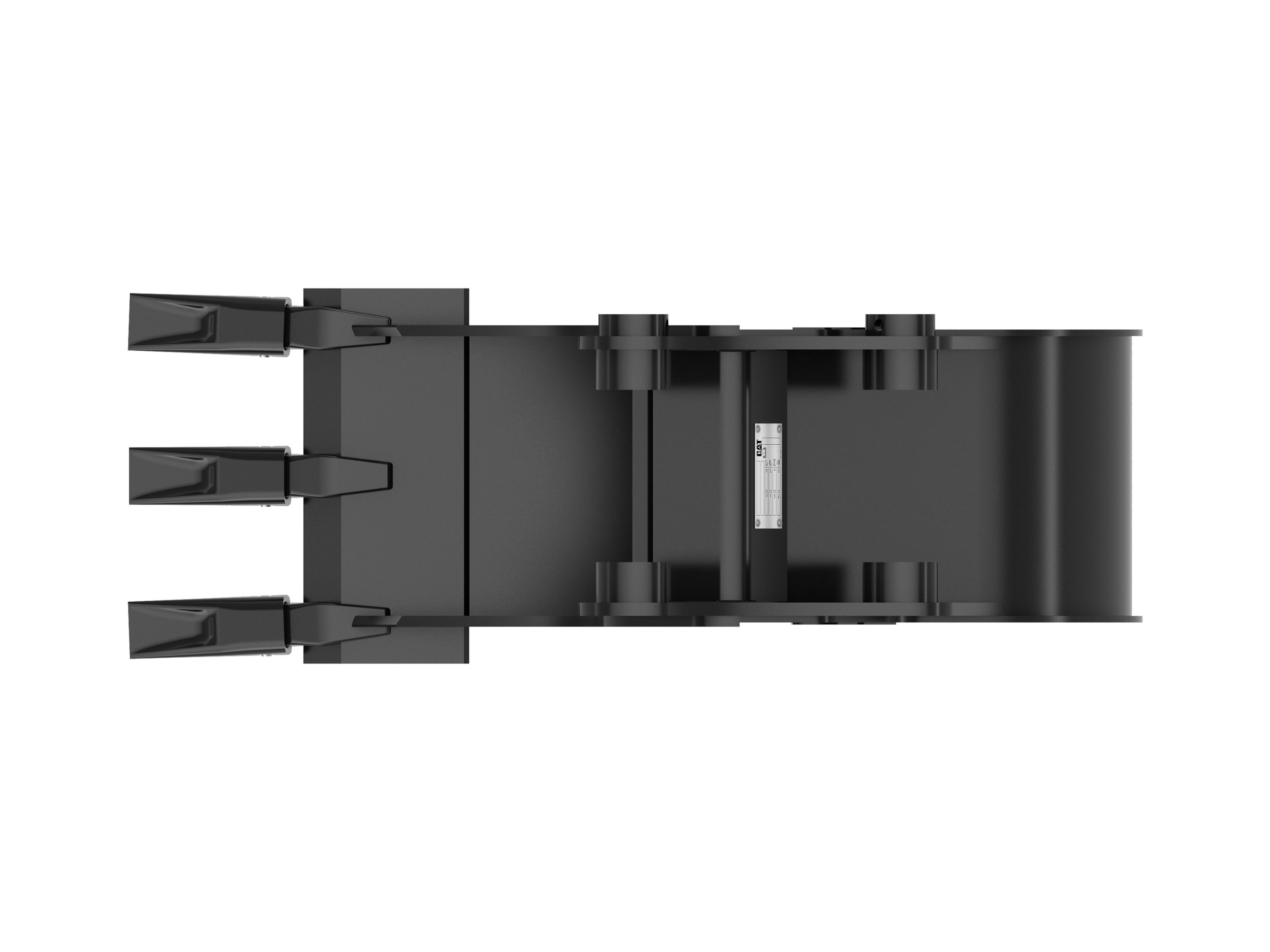

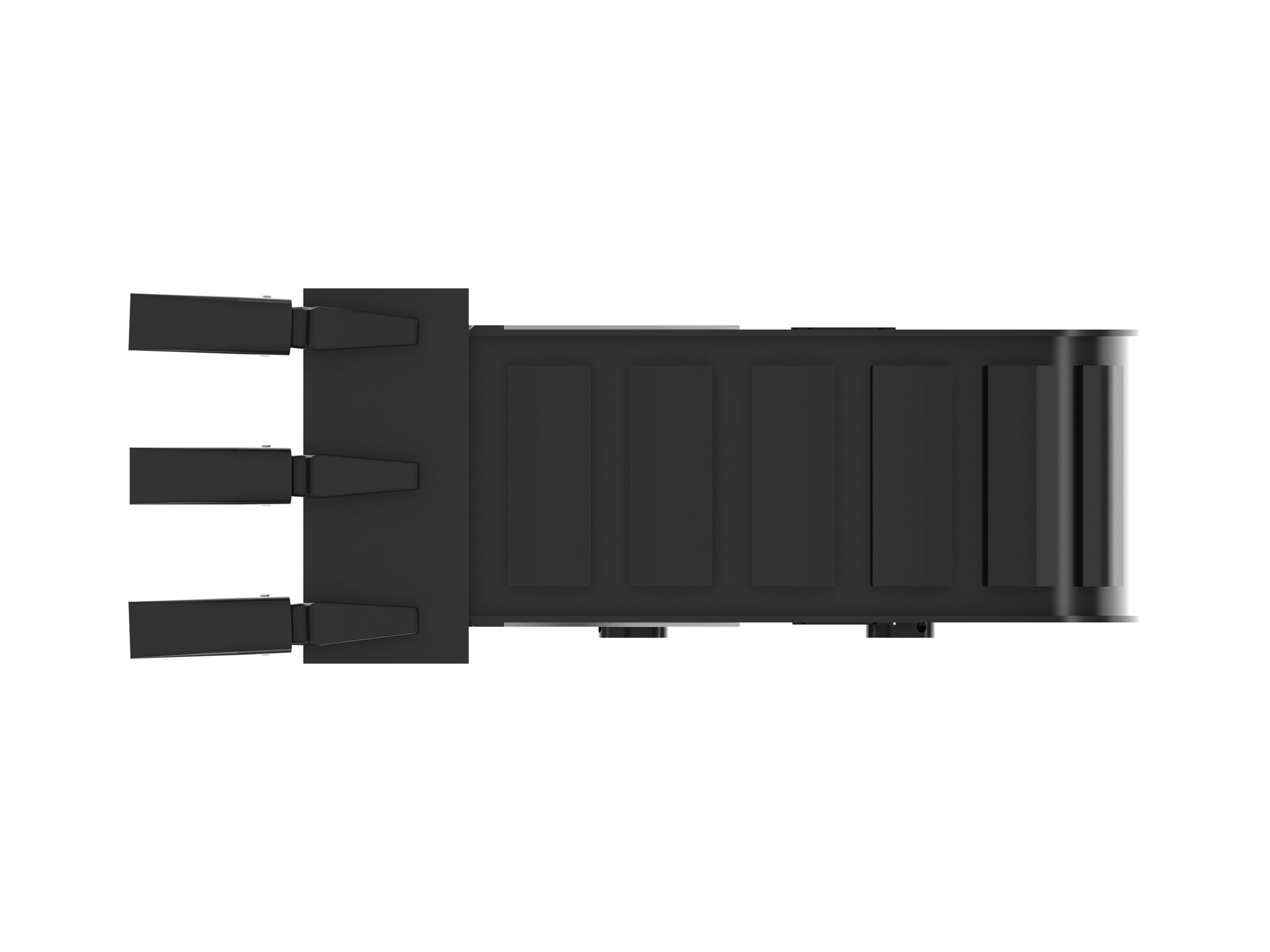

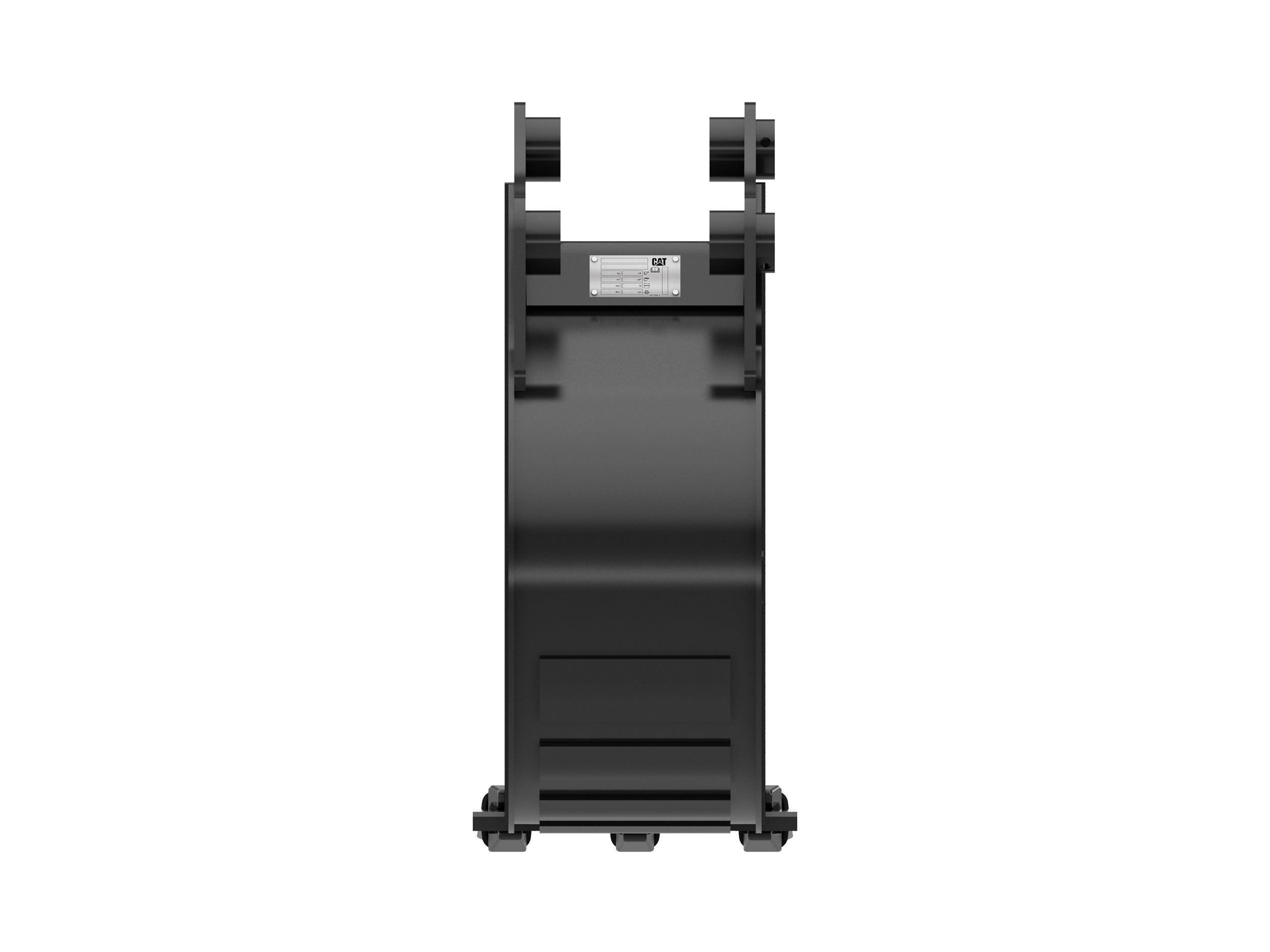

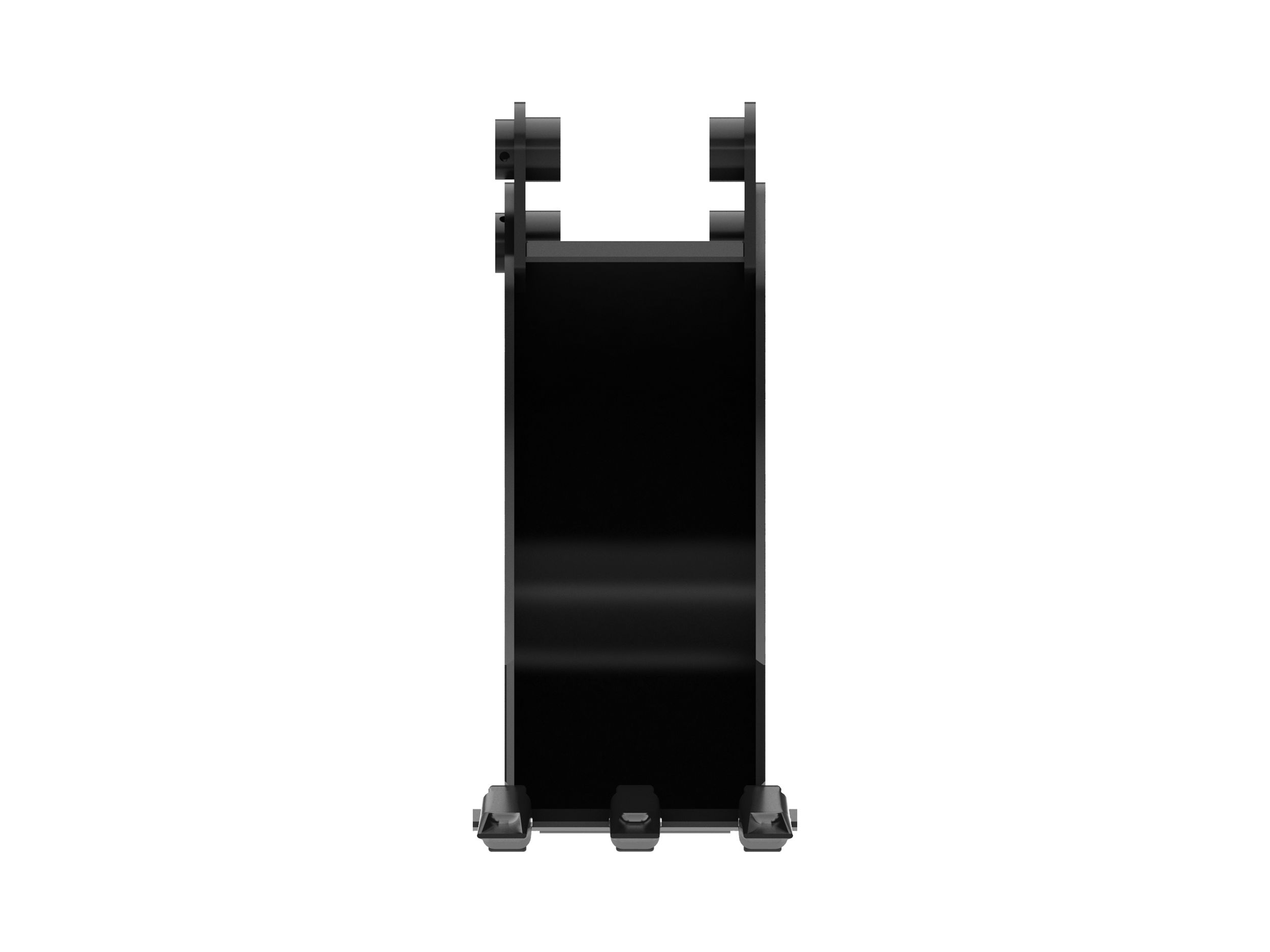

Heavy Duty Capacity Buckets - Mini Excavator 305 mm (12 in), 82 L (2.9 ft3), Pin On, 45 mm (1.8 in)

Request A Price Click for Price

Key Specs

Width: 12 in; 305 mm

Capacity: 2.9 ft³; 82.09 l

Weight: 185.2 lb; 84 kg

305 mm (12 in), 82 L (2.9 ft3), Pin On, 45 mm (1.8 in)
Change model

Overview

Optimized geometry provides maximum digging force and material volume for heavy-duty applications.

Features At A Glance

Especially suited for moving large quantities of material, such as during truck loading applications, and are capable of moving greater volumes of material than the heavy duty buckets.

Formed back wrapper design enhances bucket loading ability and production.

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Product Specifications for 305 mm (12 in), 82 L (2.9 ft3), Pin On, 45 mm (1.8 in)

Width	12 in 305 mm
Capacity	2.9 ft³ 82.09 l
Weight	185.2 lb 84 kg
Base Edge Thickness	0.8 in 20 mm
Tip Radius	33.5 in 850.59 mm
Interface Type	Pin On Pin On

Product Specifications for 305 mm (12 in), 82 L (2.9 ft3), Pin On, 45 mm (1.8 in)

Download Print

Width	12 in 305 mm
Capacity	2.9 ft³ 82.09 l
Weight	185.2 lb 84 kg
Base Edge Thickness	0.8 in 20 mm
Tip Radius	33.5 in 850.59 mm
Interface Type	Pin On Pin On
