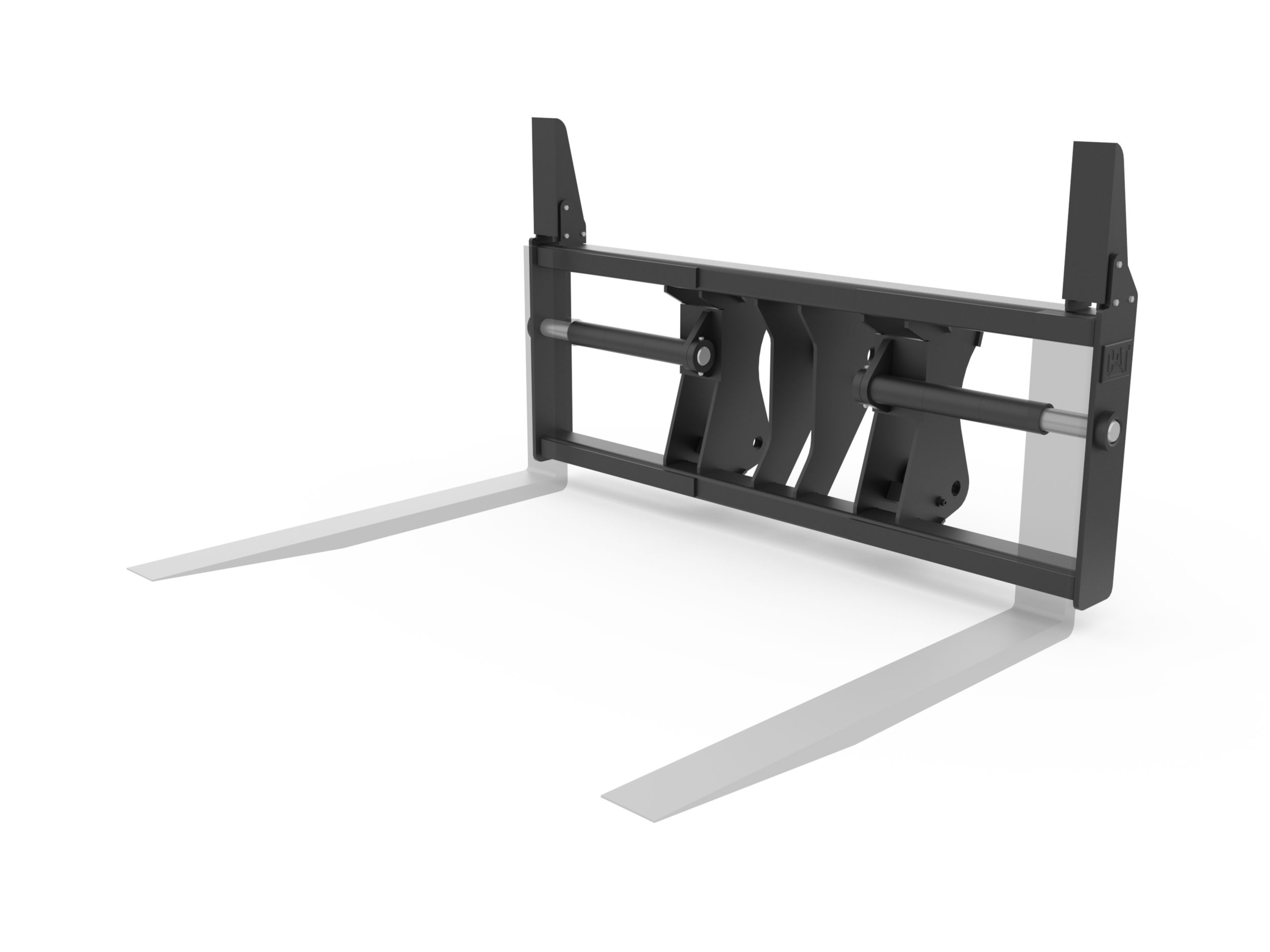

Log & Lumber Fork Carriages 2591 mm (102 in), Pin On

Request A Price Click for Price

Key Specs

Interface Type: Pin On; Pin On

Tine Configuration: Non-Swinging, Non-Floating; Non-Swinging, Non-Floating

Height: 56.8 in; 1442 mm

2591 mm (102 in), Pin On
Change model

Overview

With several sizes and options available, log and lumber fork carriages provide the tools you need for your particular job.

Features At A Glance

Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.

Risers and Log guards prevent logs from rolling back on to linkages. Maximizes the ability to fill the fork at every pass by supporting large loads.

Wider carriages increase stability when handling longer poles/loads.

Wider tine widths provide a larger surface area for stability when transporting larger materials.

Product Specifications for 2591 mm (102 in), Pin On

Interface Type	Pin On Pin On
Tine Configuration	Non-Swinging, Non-Floating Non-Swinging, Non-Floating
Height	56.8 in 1442 mm
Weight	1651.3 lb 749 kg
Width	104.7 in 2659 mm
Length	23.3 in 593 mm
Tine Spacing	1239-2551 mm (49-100 in) 1239-2551 mm (49-100 in)

Product Specifications for 2591 mm (102 in), Pin On

Download Print

Interface Type	Pin On Pin On
Tine Configuration	Non-Swinging, Non-Floating Non-Swinging, Non-Floating
Height	56.8 in 1442 mm
Weight	1651.3 lb 749 kg
Width	104.7 in 2659 mm
Length	23.3 in 593 mm
Tine Spacing	1239-2551 mm (49-100 in) 1239-2551 mm (49-100 in)
