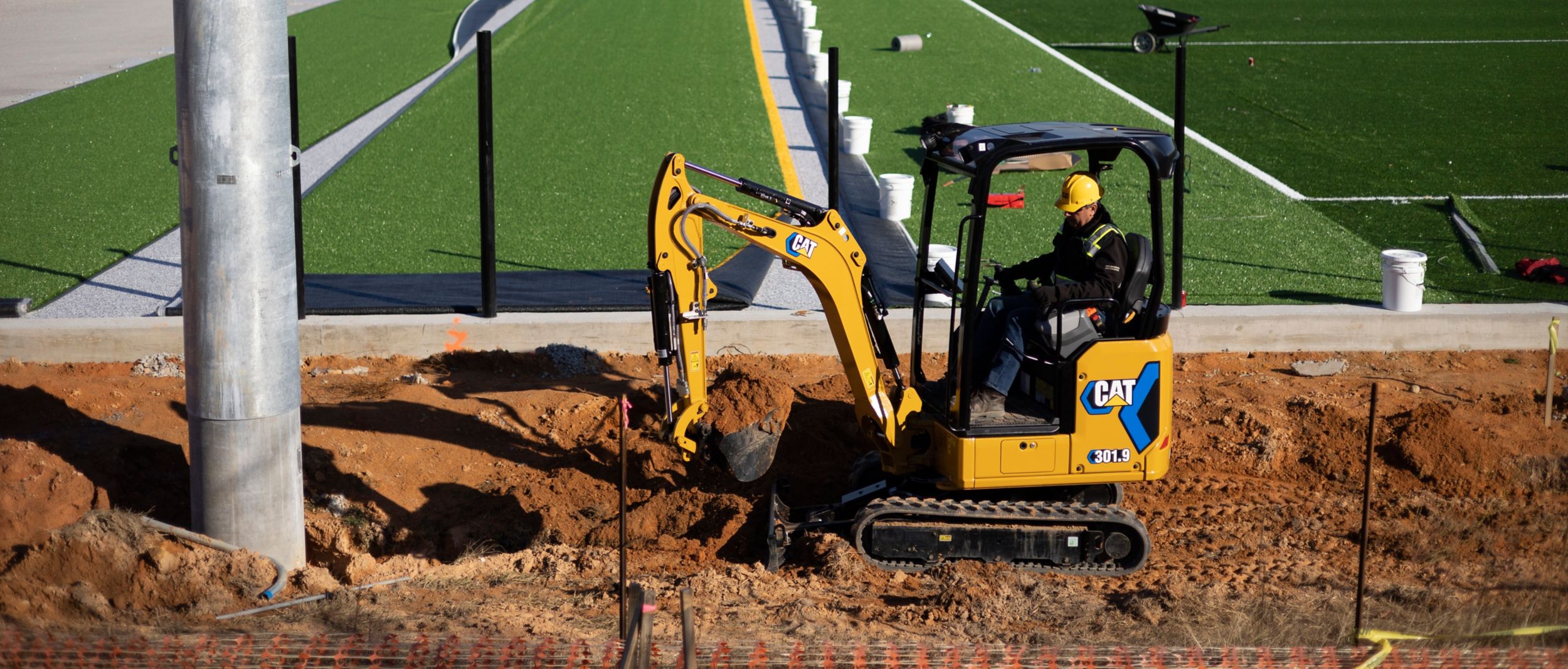

301.9 Electric Mini Excavator

Battery voltage / capacity: 48 v | 32 kWh
Operating weight: 2.2 metric tons | 4850 lb
Bucket capacity: 0.10 m³ | 0.13 yd³

Run time: up to 8 hours on a single charge^*
Charging options: 3 kW max AC overnight charge and 9 kW charging available via Cat DC charger

^*Based on typical utilization and application at a 40% to 60% utilization rate

906 Electric Compact Wheel Loader

Battery voltage / capacity: 300 v | 64 kWh
Operating weight: 6.2 metric tons | 13,670 lb
Bucket capacity: 1.05 m³ | 1.4 yd³

Run time: up to 8 hour operation with mid shift charge^*
Charging options: 6 kW max AC overnight charge (single phase) and 18 kW max charge (three phase)

^*Dependent on use and application

320 Electric Medium Excavator

Battery voltage / capacity: 750 v | 387 kWh
Operating weight: 25 600 – 27 300 kg | 56,400 – 60,200 lb
Bucket capacity: 1.3 m³ | 1.7 yd³

Run time: Up to 8 hours on a single charge* or unlimited tethered

Charging options: 66 kVA with dedicated AC connector, 118 kVA with the AC tethered and a DC fast charger (CCS2/CCS1 connector)

*Dependent on use and application

950 GC Electric Medium Wheel Loader

Battery voltage / capacity: 600 v | 256 kWh
Operating weight: 19 798 kg | 43,647 lb
Bucket capacities: 3.1 - 4.4 m³ | 4.0 - 5.75 yd³

Run time: Up to 8 hours with a mid-shift 45-minute charge* at max 290 kW

Charging options: 22 kW max AC on-board charger and DC max 290 kW with MEC360 with CCS2 liquid-cooled cable

*Impacts to operating/charge time include extensive loaded traveling, working in hard/heavy materials, and extreme ambient temperatures

395 Tethered Electric Large Excavator

Electric Motor Power (IEC 60034): 481 kW | 645 hp
Operating Weight: 91 500 - 103 700 kg | 201,723 – 228,619 lb
Bucket Capacity: 6.5 m³ | 7.8 yd³

Run time: Unlimited operation while connected to the grid via the Cat Energy Distribution Skid (EDS)

Optional undercarriage mounted cable reel to provide mobility

Requires 1,000V 3-phase supply
