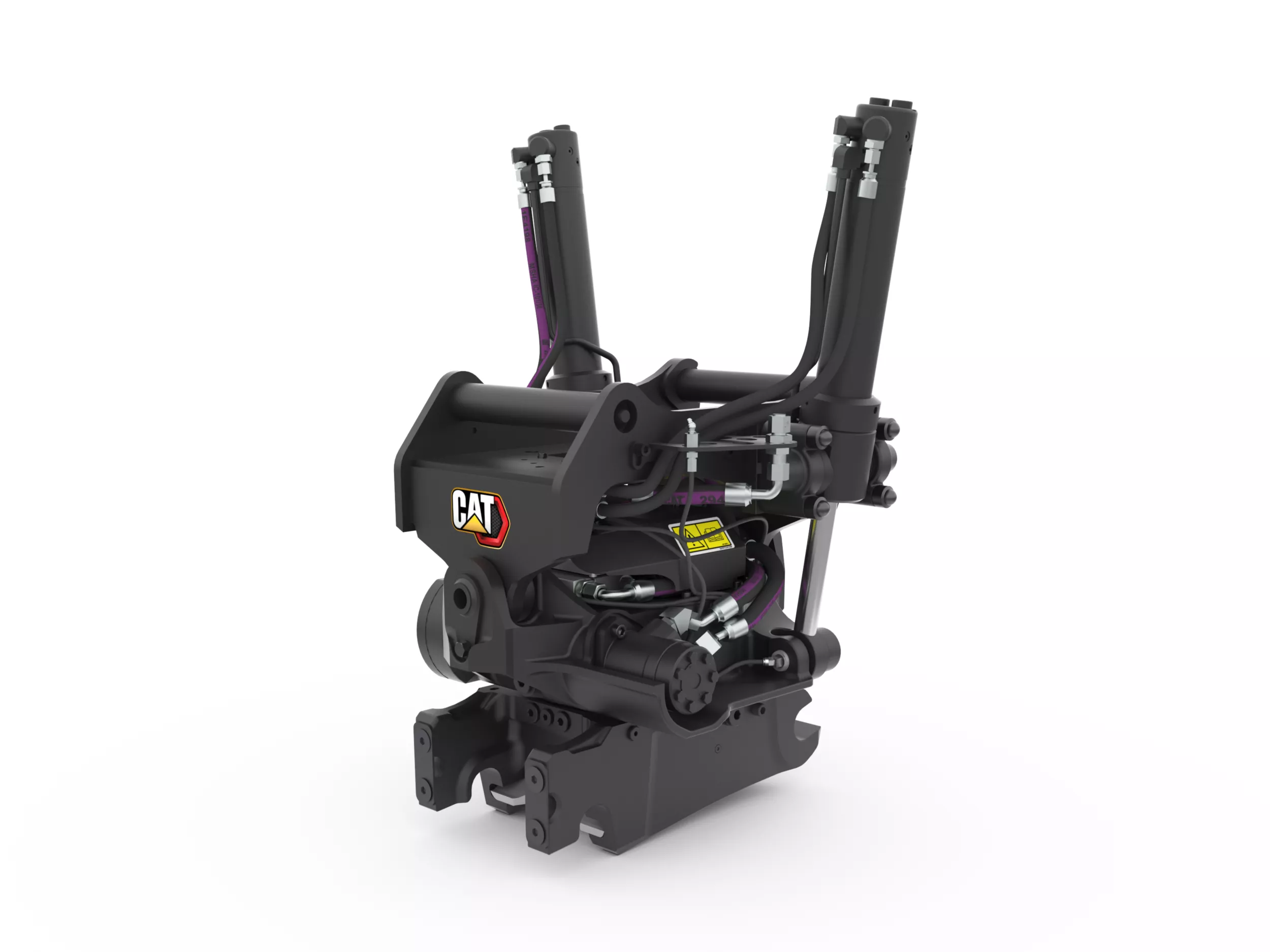

Tilt Rotate Systems TRS8, S50 Coupler/S50 Coupler, 7-10 Ton Mini Excavators

Request A Price Click for Price

Key Specs

Machine Class: 7-10 Ton Mini Excavators; 7-10 Ton Mini Excavators

Weight: 672.6 lb; 305.1 kg

Interface Options: Top-Bottom: S-50 / S-50; S-50 / S-50

TRS8, S50 Coupler/S50 Coupler, 7-10 Ton Mini Excavators
Change model

Overview

Cat® Tiltrotators help you maneuver obstacles in your work area without the need for repositioning your machine.

Features At A Glance

Provides optimal control of your work tools to provide greater flexibility.

A single point of entry for grease allows the entire unit to be greased quickly and easily.

Upgraded software informs the operator of the attachments position via standard equipped monitoring sensors.

A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.

Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.

Double Acting Cylinders with Load Hold Valves

Valves sustain holding pressures and prevent cylinders movement under load constraints required by directives.

The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.

Used to pick up objects such as pipe and debris.

LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.

Used for visibility when engaging and disengaging a tool underneath the TRS8.

Only compatible with the following Next Gen machines and serial numbers:

307.5 - S/N GW7 1 & Up
308 - S/N GG8 1 & Up
308 - S/N GW8 1 & Up
309 - S/N GG9 1 & Up
309 - S/N GW9 1 & Up
310 - S/N GWT 1 & Up

Product Specifications for TRS8, S50 Coupler/S50 Coupler, 7-10 Ton Mini Excavators

Machine Class	7-10 Ton Mini Excavators 7-10 Ton Mini Excavators
Weight	672.6 lb 305.1 kg
Interface Options: Top-Bottom	S-50 / S-50 S-50 / S-50
Overall Height	37.6 in 956 mm
Length	24.1 in 613 mm
Overall Width	26.7 in 678 mm
Rotation Speed	7 Seconds per 1 full rotation 7 Seconds per 1 full rotation
Tilt Angle Range +/-	40° Left/Right 40° Left/Right
Maximum Bucket Capacity	17.7 ft³ 500 l
Maximum Bucket Width	59.1 in 1500 mm
Optimal Hydraulic Flow	45-75 L/min (12-20 gpm) 45-75 L/min (12-20 gpm)
Maximum Operating Pressure	3625.9 psi 25000 kPa
Required Hydraulics	1st Auxiliary 1st Auxiliary
Tilting Torque	19545.4 lb/ft 26500 N·m
Turning Torque	2876.5 lb/ft 3900 N·m

Product Specifications for TRS8, S50 Coupler/S50 Coupler, 7-10 Ton Mini Excavators

Download Print

Machine Class	7-10 Ton Mini Excavators 7-10 Ton Mini Excavators
Weight	672.6 lb 305.1 kg
Interface Options: Top-Bottom	S-50 / S-50 S-50 / S-50
Overall Height	37.6 in 956 mm
Length	24.1 in 613 mm
Overall Width	26.7 in 678 mm
Rotation Speed	7 Seconds per 1 full rotation 7 Seconds per 1 full rotation
Tilt Angle Range +/-	40° Left/Right 40° Left/Right
Maximum Bucket Capacity	17.7 ft³ 500 l
Maximum Bucket Width	59.1 in 1500 mm
Optimal Hydraulic Flow	45-75 L/min (12-20 gpm) 45-75 L/min (12-20 gpm)
Maximum Operating Pressure	3625.9 psi 25000 kPa
Required Hydraulics	1st Auxiliary 1st Auxiliary
Tilting Torque	19545.4 lb/ft 26500 N·m
Turning Torque	2876.5 lb/ft 3900 N·m
